The DNA Ladder
contains a fluorescent DNA stain and tracking dyes
OneMARK B with the Novel Green was designed to show virtually uniform spacing over a wide fragment range. The ladder is supplied in a ready-to-use format containing the
fluorescent DNA stain and tracking dyes. High quantum yield and excellent stability make the fluorescence dye the ideal fluorophore for DNA staining applications and a
superior replacement for the widely used dyes, ethidium bromide or SYBR® Green I.
The OneMARK B with the Novel Green was optimized for direct loading onto unstained agarose gels.
The ladders provide the highest level of convenience during the routine handling and avoid commonly used gel staining procedures with the ethidium bromide or SYBR® Green I.
The OneMARK B includes fragments ranging from 250-10,000 base pairs. The 1K and 3K bands have increased intensity to serve as reference points. The approximate mass of DNA in
each band is provided (0.5 μg per loading) for approximating the mass of DNA in comparably intense samples of similar size.
Direct loading onto your agarose gel for analysis
PCR products and double-stranded DNA digested with appropriate restriction enzymes are phenol-extracted and equilibrated to 10 mM Tris-HCl (pH 8.0) and 1 mM EDTA.
Note: OneMARK B is light sensitive and should be stored and protected from light.
Number of bands:13
Package:50 μg /600 μl
Recommended Load:6 μl / well
Containing bromophenol blue and xylene cyanol FF as the tracking dyes.
Store at RT and 4°C up to 6 months.
Store at -20°C up to 1 year.

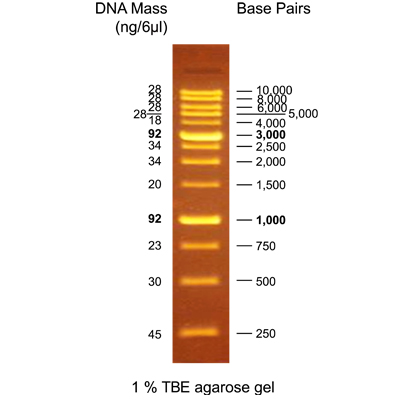

Chart of 1000 bp DNA ladder with fluorescent stain
One Mark B 1000 bp DNA Ladder
The OneMARK B 1000 with the Novel Green was optimized for direct loading onto unstained agarose gels
